E+G CFA. Hinge

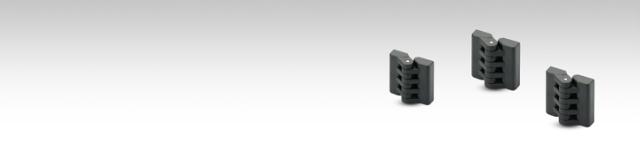

Elesa+Ganter CFA hinge

Material: High-resilience polyamide based (PA) technopolymer. Resistant to solvents, oils, greases and other chemical agents. Colour Black, matte finish. Rotation pin AISI 303 stainless steel.

Standard executions:
- CFA-B: nickel-plated brass bosses with threaded hole.
- CFA-p: nickel-plated steel threaded studs.
- CFA-SH: pass-through holes for countersunk head screws.
- CFA-CH: pass-through holes for cylindrical head screws.
- CFA-B-p: nickel-plated brass bosses w/threaded hole+nickel-plated steel threaded studs.
- CFA-B-SH: nickel-plated brass bosses w/threaded hole+pass-through holes for countersunk head screws.
- CFA-B-CH: nickel-plated brass bosses w/threaded hole+pass-through holes for cylindrical head screws.
- CFA-p-SH: nickel-plated steel threaded studs pass-through holes for countersunk head screws.
- CFA-p-CH: nickel-plated steel threaded studs and pass-through holes for cylindrical head screws.

Rotation angle Max 215° (-35° and + 180° being 0° the condition where the two interconnected surfaces are on the same plane). Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical peformance.
