    E+G CX Latch

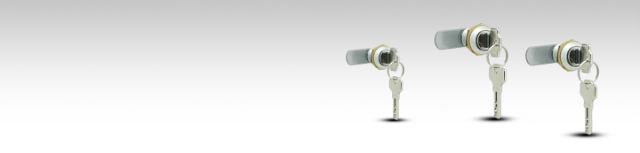

    Elesa+Ganter CX latch lock with opposing blades and double track key with internal profile.
    Stator: Glossy chrome-plated zinc alloy.
    Rotor: Chrome-plated zinc alloy with drill-proof hardened steel plate and stainless steel front plate.
    Nut: Brass (M19x1).
    Spring washer: Zinc-plated steel.
    Closing lever: Zinc-plated steel, thickness 2.5 mm.
    Screw: Zinc-plated steel (M5x5).
    Two reversible keys: Nickel-plated brass, removable in two positions at 180°.
    Rotation 180°.
    IP 65 protection class, according to IEC 529 table.

    Standard executions available:
    - CX.: lock with 15,660 different combinations. Each lock has a key with different combination.
    - CXU.: lock with one combination. All locks have a key with the same combination.
