E+G Clamping bolt
GN 804-M10-85
20942675C
Vendor stock: 120, Can be built: 0
5 In stock

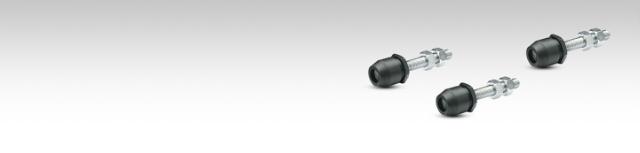

E+G GN 804 Clamping bolt
Elesa+Ganter GN 804 Clamping bolts with adjustable sping-loaded clamping pad
Material: Bolt made from zinc-plated steel, class 5.8 (tensile stength 500 N/mm2), blue passivated. Clamping pad in black-oxide nitrided steel. Hexagon nuts in zinc-plated steel, blue passivated.
In order to pass the dead centre point and/or compensate for work piece tolerances when using hand operated toggle clamps, an elastic clamping pad such as GN 708.1 can be used. GN 804 clamping bolts fitted with Belleville spring washers not only help to overcome work piece tolerances but they also allow presetting of the required clamping force.
Please use the filter to find specific products. Need help? Call us at +45 43 86 83 33.
E+G Clamping bolt
GN 804-M12-106
20942696B
Vendor stock: 58, Can be built: 0
8 In stock
E+G Clamping bolt
GN 804-M5-45
20942613A
Vendor stock: 165, Can be built: 0
Not in stock
E+G Clamping bolt
GN 804-M6-50
20942630
Vendor stock: 157, Can be built: 0
Not in stock
E+G Clamping bolt
GN 804-M8-70
20942654
Vendor stock: 418, Can be built: 0
Not in stock
5 out of 5 products
