E+G Pneumatic clamp GN 863

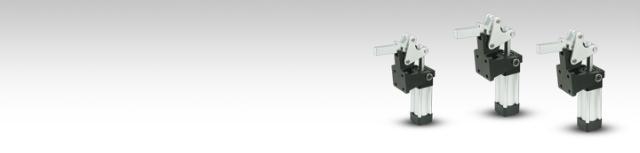

Elesa+Ganter GN 863 Pneumatically operated clamps - Heavy duty type

Body
Black laquered die-cast steel.
Metal parts
Zinc-plated weldable steel, blue passivated.
Bearing pins
Case-hardened steel.
Double acting cylinder
With adjustable cushioning, maximum operating pressure 6 bar.
Features and applications
All the moving parts are lubricated with special grease. GN 863 pneumatically operated clamps have been designed to make
them easily disassembled. The bearing pins are axially fixed with circlips. This allows the clamping arm to be modified once it
is dismounted in order to suit any particular application. To ensure an extended life to the mechanical parts as well as their air
cylinders, the operating pressure should not exceed 6 bar. In addition a lubro control unit should be fitted in the air line. GN
863 (with magnetic piston) together with proximity switch GN 896.3 can be sensed and the generated signal leads to an
electrical impulse. For further details see GN 896.3.
